Surveying Instruments Meter Length Walking Digital Distance Wheel Measuring

Surveying Instruments Meter Length Walking Digital Distance Wheel Measuring
Surveying Instruments Meter Length Walking Digital Distance Wheel MeasuringSurveying Instruments Meter Length Walking Digital Distance Wheel MeasuringSurveying Instruments Meter Length Walking Digital Distance Wheel MeasuringSurveying Instruments Meter Length Walking Digital Distance Wheel MeasuringSurveying Instruments Meter Length Walking Digital Distance Wheel Measuring
CategoriesMeasuring Wheel
BrandWINTAPE MEASURING TAPE
ModelDW-001
Measurement Range0-10000FT/10000M
Wheel diameter318mm
Extend length1010mm
Storage Size530mm
Max.counting speed360R/MIN
Unit PriceUS $40 / piece
FOB portGuangzhou
Terms of PaymentWestern Union,T/T,Paypal
Update Time02-19-2019
Detail Information

1.Introduction

Measuring wheel also called mechanical ranging car or digital distance

measuring wheel.it is widely used to measuring distance in professional

surveying and mapping work,road engineering,landscape planning and

design,golf course and lanes ect.




2. Product Show


——————————————————————————————————

————————————————————————————————————

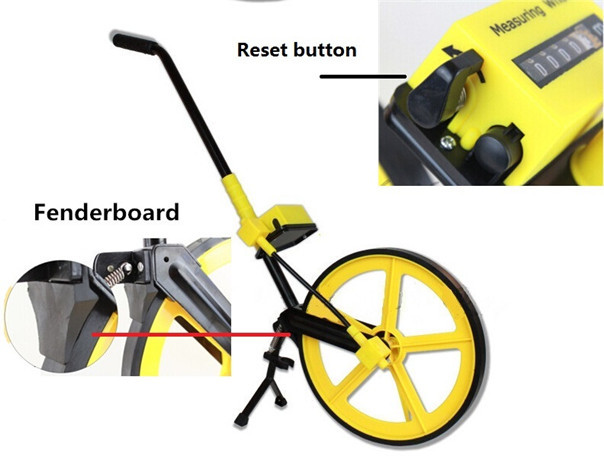

3. Features

  • Gear driven counter with push button reset and spring loaded kickstand

  • Adjustable twist and lock handle with comfortable pistol grip

  • Counter reads up to 10,000-Feet

Item No.:

DW-001

Place of Origin:

FOSHAN,CN

Measurement Range:

0-99999.9meters

Measurement Accuracy:

99%

Wheel diameter:

318mm

Max.counting speed:

360R/MIN

Extend length:

1010mm

Storage Size

530mm

NW:

1.9KG

GW:

3KG

Power:

Electronic

Characteristics:

Portable and durable

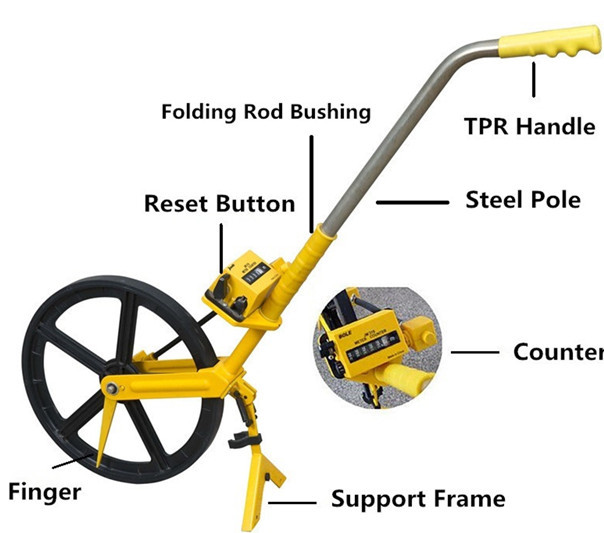

4. Instructions

1)Pull the steel pole to straight,move down folding rod bushing to keep the 2
parts of rod steady and in a straight line;

2)Wheel up the support frame;

3)Contrarotate the reset button to the end,the counter reset to zero;

4)Put the bottom of roulette at the starting position,holding the handle part
and move forward till to the end point,then read the counter.
